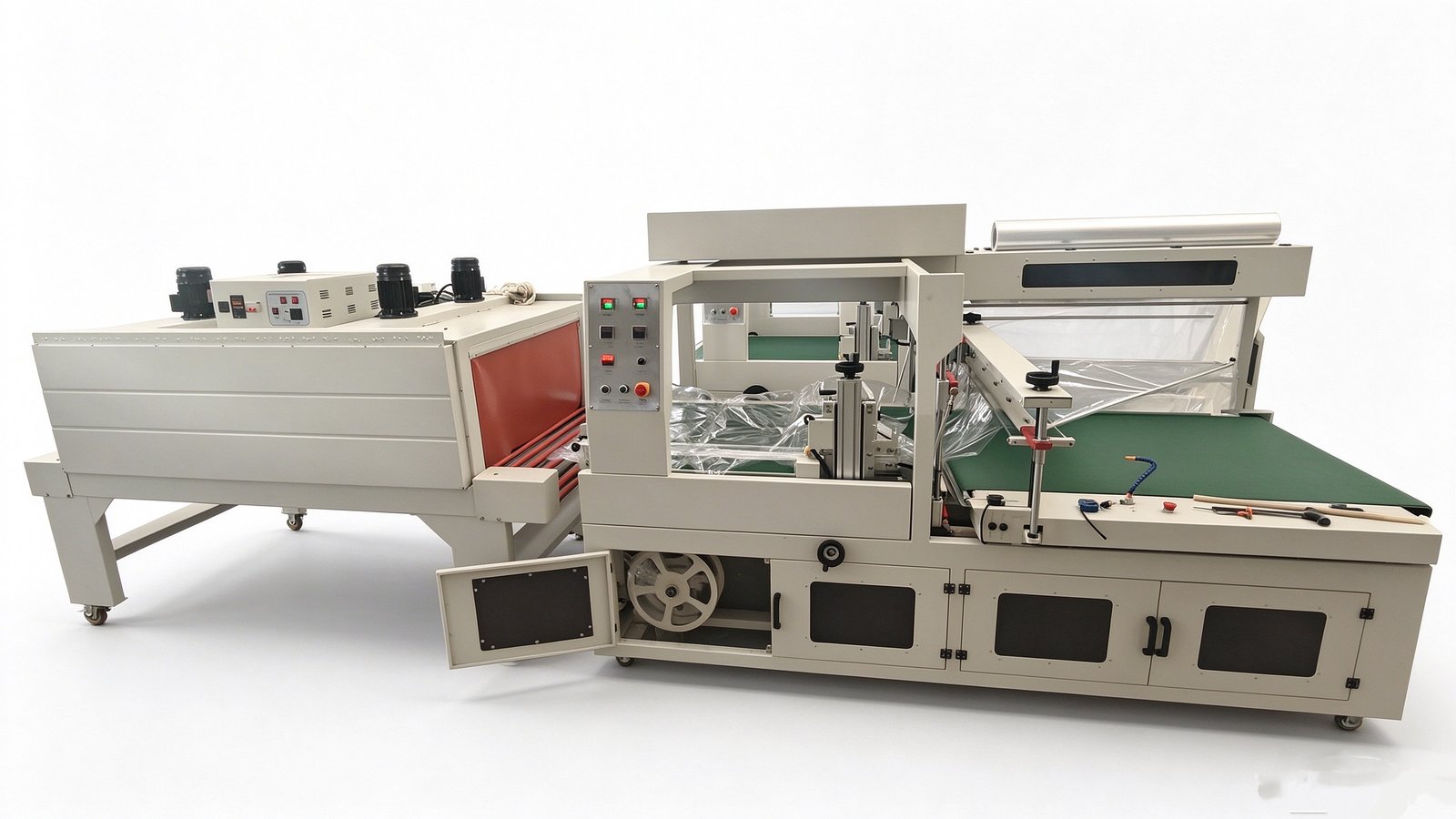

HX-902B-1150 Large Sealing and Shrink Machine

Applications: The fully automatic side-sealing packaging production line is a fully automated, unmanned packaging machine. It features an automatic film feeding and punching device, a manually adjustable film guiding system, and a manually adjustable feeding conveyor platform. It can be used with packaging production lines, automatically completing feeding, bagging, sealing, cutting, and shrinking

Product Description

Main technical parameters:

Machinery Name	Fully automatic sealing and cutting machine	Shrink packaging machine
Power supply/power	220V/3.0kw	380V/23kw
Packaging speed	10-20 pieces/minute	0-15 meters per minute
Sealing knife size / furnace cavity size	Width less than 1000 mm, length unlimited	L2000×W1050×H500(mm)
Packaging size	W+H≤950、H≤400
Mechanical dimensions	L3150×W1680×H1540(mm)	L2580×W1380×H1460(mm)
Use gas source	6-8kg	unnecessary
Mechanical weight	650kg	750kg

一．Equipment advantages and features:

Equipment advantages：

Efficiency: A fully automatic side-sealing machine requires only 2 workers; the packaging speed is 1000-1500 boxes per hour, equivalent to the packaging output of 5 people per hour by hand.

Cost Savings: One fully automatic side-sealing machine can save 3-5 workers, and the cost can be recovered in less than three to six months; shrink film material costs are reduced by 30% per box packaged.

Purpose: Using FORLONG fully automatic side-sealing machines to replace manual labor not only enhances your company’s strength and improves production efficiency but also saves you more costs; Huixin is fully responsible for every machine sold, ensuring your packaging is faster and more perfect.

Product Features：

The entire machine achieves truly unmanned operation integrated with the production line;

Adjustments are very simple when the packaging size changes, without the need to change molds or bag makers;

Automatic feeding, and the length can also be automatically adjusted via a combination of photoelectric sensors and timers. Equipped with an induction motor, it automatically picks up waste material;

The sealing and cutting blade has an automatic protection function, effectively preventing accidental cutting of packaging materials;

The temperature controller uses an imported digital display temperature controller with built-in PID function, making the sealing blade temperature extremely sensitive and precise, and can be set arbitrarily. There is no need to worry about inaccurate temperature damaging the product;

The sealing blade uses a DuPont Teflon-coated, non-stick, high-temperature resistant aluminum alloy blade, ensuring a strong sealing line that will not crack, char, smoke, or cause zero pollution;

Equipped with imported photoelectric sensors, one set each for horizontal and vertical detection, allowing for easy switching and selection. It can easily complete sealing and packaging operations for thin and small packaging materials;

The sealing and cutting part of the machine is equipped with an acrylic protective cover and has an automatic alarm function, greatly improving operator safety.

二.Introduction to Sealing and Cutting Machine Technology

part	Details		Technical Specifications
Power supply/power	220V 50/60Hz ≤2kw
Sealing system	Heat source		Made with stainless steel heating element, long service life
	Sealing the sword		The blade is made of an anti-stick, high-temperature resistant alloy, and the exterior is coated with a Teflon non-stick film.
	Sealing knife temperature control		It adopts a Japanese “OMRON” digital display temperature controller and imported heat-sensitive control, with an adjustable temperature range of 0-400°C.
	sealing knife size		The width is manually adjustable, and the height is 350mm；Sealing cutter size: 850mm
	Knife protection		Utilizing German “SICK” technology. Effectively prevents mis-sealing of packaged items.
	cylinder		Taiwan Yadak cylinder-controlled sealing and cutting ensures a firm and stable seal with low noise during operation.
Conveying system	belt		German Siglin PU conveyor belt
	motor		China Maili guarantees stable delivery.
	Detection		Employing Banner photoelectric sensors from the USA, it accurately and sensitively detects product delivery and stopping.
Recycling System	motor		China Maili guarantees accurate and uniform waste recycling.
	Induction switch		Using German “SICK” technology to accurately control waste recycling time
Film delivery system	motor		China Maili delivers film smoothly.
	Induction switch		Using German “SICK” precision control for film feeding length
contactor	France SCHNEIDER (Optional)
intermediate relay	Japan OMRON
Thermostat	Japan OMRON
emergency switch	China Delixi
Hole punch	Precision punching equipment, flexible adjustment of pinhole position, and matching non-wearing fiber rollers.
Mechanical component materials	Carbon steel is powder-coated, while key parts are constructed with stainless steel plates and aluminum profiles to ensure structural sturdiness.
Mechanical dimensions	L2800×W1450×H1900(mm)(The actual dimensions (LWH) are subject to the product shown.)
Packaging speed	Depending on the size of the package (0-30 pieces/minute)
air pressure		6-8KG/cm2
Surface treatment requirements		Corrosion-resistant structural materials with powder coating or nickel plating.

三．Random accessories and tools

Serial Number	name	quantity	Remark
1	host	1 unit
2	High-temperature adhesive tape	Volume 1
3	silicone strip	1 item
4	tool bag	1 set
5	manual	1 copy
6	Certificate of Conformity/Warranty Card	1 copy
