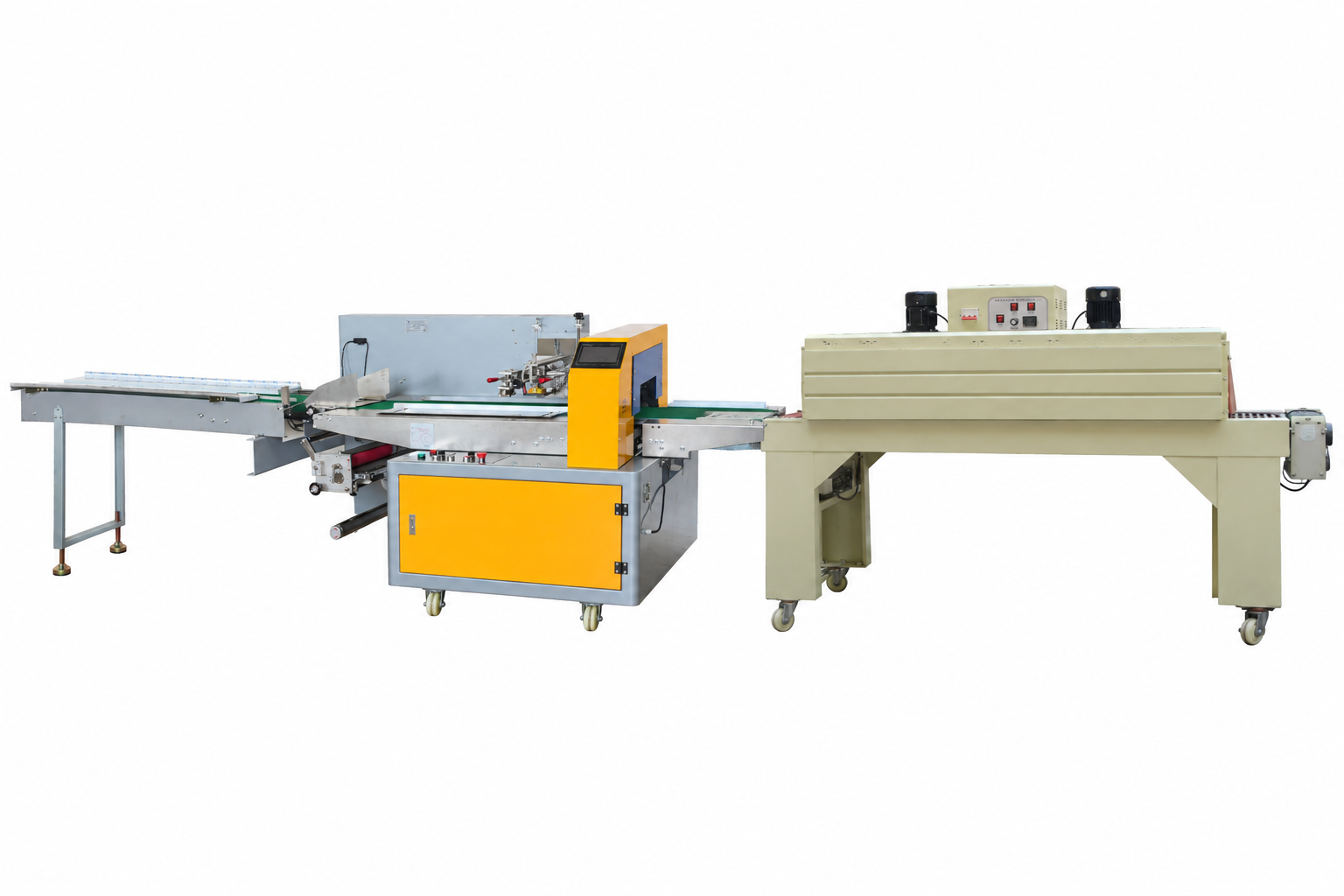

The POF Servo Packaging Machine is an automatic film packaging solution designed for efficient and professional packaging of a wide range of products. Using POF shrink film and a servo-driven control system, the machine provides precise feeding, sealing, cutting, and shrink packaging for different product sizes and shapes.
It is ideal for manufacturers looking to increase packaging efficiency, reduce manual labor, and achieve consistent packaging quality. The finished package is neat, transparent, and tightly wrapped, providing additional protection against dust, moisture, and handling during transportation.
(1) Servo control allows for immediate bag cutting based on the set length—eliminating the need for trial runs or adjustments—thereby saving time and packaging film. An electric eye automatically tracks the product to control bag formation, and the cutter speed adjusts automatically.
(2) Human-machine interface (HMI) enables quick and convenient parameter settings.
(3) Self-diagnosis function clearly displays any faults.
(4) High-sensitivity photoelectric eye for color mark tracking; digital input of sealing and cutting positions ensures greater accuracy.
(5) Independent PID temperature control makes the machine suitable for a wide range of packaging materials.
(6) Positioning stop function prevents the film from sticking to the cutter and avoids material waste.
(7) Simplified drive system ensures reliable operation and easy maintenance.
(8) Color touchscreen display offers intuitive operation and easy adjustments; features self-diagnosis, data storage, and easy product changeover; stores linear cutter speeds and product feeding positions for each product type.
(9) Automatic centering function eliminates the need to manually set the material position.
2、Scope of Application
Suitable for packaging soft, elongated, or loose items such as medical masks, N95 masks, towels, tissues, dried noodles, egg rolls, sausages, squid, popsicles, gummy candies, cookies, and fresh fruit.
3、Optional equipment
(1) Date coder (prints production date)
(2) Gas-filling device (nitrogen flushing)
(3) Chain-bagging device
(4) Alcohol spraying device (disinfection)
(5) Punching device (for round holes, Euro-slots, etc.), deoxidizer dispenser, and exhaust device
4、800X Introduction to the Three Servo Parameters
| model | HX-901D-450 | HX-901D-800 |
| Film width | Maximum 450 mm | Maximum 800mm |
| Bag width range | 90-210mm | 180-380mm |
| Bag length | Arbitrary length (preset or sensed) | Arbitrary length (preset or sensed) |
| Product height | 10-110mm | 30-200mm |
| speed | 15-30bags/min | 10-20Bags/min |
| weight | 400KG | 600KG |
| Voltage | 220V,50/60HZ | 220V,50/60HZ |
| Machine dimensions | (L)3950 X(W)820X(H)1450mm | (L)3950 X(W)1200X(H)1500mm |
| Cutter mode | Rotary type (accommodates packaging heights up to 80mm) | |
| Reciprocating type (can pack up to 80mm high, fast speed, 60 packs/minute) | ||
| Top and bottom cutting (packaging height 200mm) | ||
| model | HX-901D-350 |
| Film width | Maximum 350mm |
| Bag width range | 30-155mm |
| Bag length | Arbitrary length (preset or sensed) |
| Product height | 30-80mm |
| speed | 30-60Bags/min |
| weight | 280KG |
| Voltage | 220V,50/60HZ |
| Machine dimensions | (L)3950 X(W)790X(H)1350mm |
| Cutter mode | Rotary type (accommodates packaging heights up to 80mm) |
| Reciprocating type (can pack up to 80mm high, fast speed, 60 packs/minute) | |
| Top and bottom cutting (packaging height 200mm) |
| model | HX-901D-600 | HX-901D-650 |
| Film width | Maximum 600mm | Maximum 650mm |
| Bag width range | 80-280mm | 105-305mm |
| Bag length | Arbitrary length (preset or sensed) | Arbitrary length (preset or sensed) |
| Product height | 10-200mm | 30-200mm |
| speed | 15-25bags/min | 15-23Bags/min |
| weight | 450KG | 500KG |
| Voltage | 220V,50/60HZ | 220V,50/60HZ |
| Machine dimensions | (L)3950 X(W)910X(H)1460mm | (L)3950 X(W)1020X(H)1470mm |
| Cutter mode | Rotary type (accommodates packaging heights up to 80mm) | |
| Reciprocating type (can pack up to 80mm high, fast speed, 60 packs/minute) | ||
| Top and bottom cutting (packaging height 200mm) | ||
| model | HX-901D-700 | HX-901D-850 |
| Film width | Maximum700mm | Maximum 850mm |
| Bag width range | 130-330mm | 205-405mm |
| Bag length | Arbitrary length (preset or sensed) | Arbitrary length (preset or sensed) |
| Product height | 10-200mm | 30-200mm |
| speed | 15-20bags/min | 10-20Bags/min |
| weight | 550KG | 650KG |
| Voltage | 220V,50/60HZ | 220V,50/60HZ |
| Machine dimensions | (L)3950X(W)1100X(H)1480mm | (L)3950 X(W)1300X(H)1530mm |
| Cutter mode | Rotary type (accommodates packaging heights up to 80mm) | |
| Reciprocating type (can pack up to 80mm high, fast speed, 60 packs/minute) | ||
| Top and bottom cutting (packaging height 200mm) | ||
5. Electrical Equipment List
| No. | name | brand | Place of origin |
| 1 | Display screen | Kunlun Tongtai | China |
| 2 | Servo motor | Fengdian | China |
| 3 | Electric Eye | Fuwei | China |
| 4 | Proximity switch | Shanghai Nakajima | China |
| 5 | Knife base | Huixin Intelligent | China |
| 6 | Brush assembly | Zhejiang Yihuang | China |
| 7 | Solid-state relay | Domestic-made | China |
| 8 | Button | Zhejiang Kenaida | China |
| 9 | power supply | Single-phase 220V/50HZ | China |
| 10 | Temperature controller | Zhejiang Shangnan | China |
| 11 | breaker | Zhejiang Tianzheng | China |
| 12 | Heating element | Foshan Zhongxing | China |
| 13 | Packaging film width range | Customized according to product requirements | |
| 14 | Packaging film thickness | 0.18~0.08mm | |
| 15 | Applicable packaging materials | Customized according to product requirements |
Heat Shrink Machine Specification
| Model | HX-902-4020 |
| Voltage | 220V-380V,50-60HZ |
| Power | 9KW |
| Packing speed | 0-17meters/min |
| Shrink Oven Dimensions
|
1200*400*200mm |
| Conveying Material
|
Mesh belt, chain roller, Teflon |
| Conveying Load Capacity
|
10KG |
| Machine dimension （L×W×H） | 1600*560*660mm |
| Machine weight | 80KG |
| Applicable shrink film | POF |
| Packing size | 1670x670x860mm
137KG |
